Identify JD Disk Plows (all types)

Disk plows are similar to moldboard plows in that they are a primary tillage tool and each bottom or disk is carried by itself (if your plow has a Gang of disks you have a Disk Tiller rather than a disk plow). Disk plows began as horse drawn tools and adapted for tractor use. They were excellent tools for tilling rough ground (sometimes called new ground or newly cleared ground) with lots of saplings, roots, stalks, and rocks. In southern regions they are sometimes referred to as 'Round Bottom Plows'. Today survival rates for disk plows is particularly low due to the conditions to which they were often subjected. Those implements which still survive are often in poor condition with missing parts and welding/ brazing a common feature.

Use the images below as a guide to help in identifying JD disk plows.

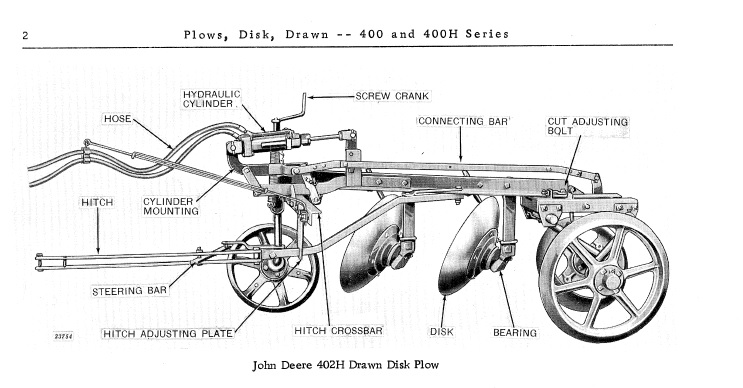

  • 402H series drawn disk plow

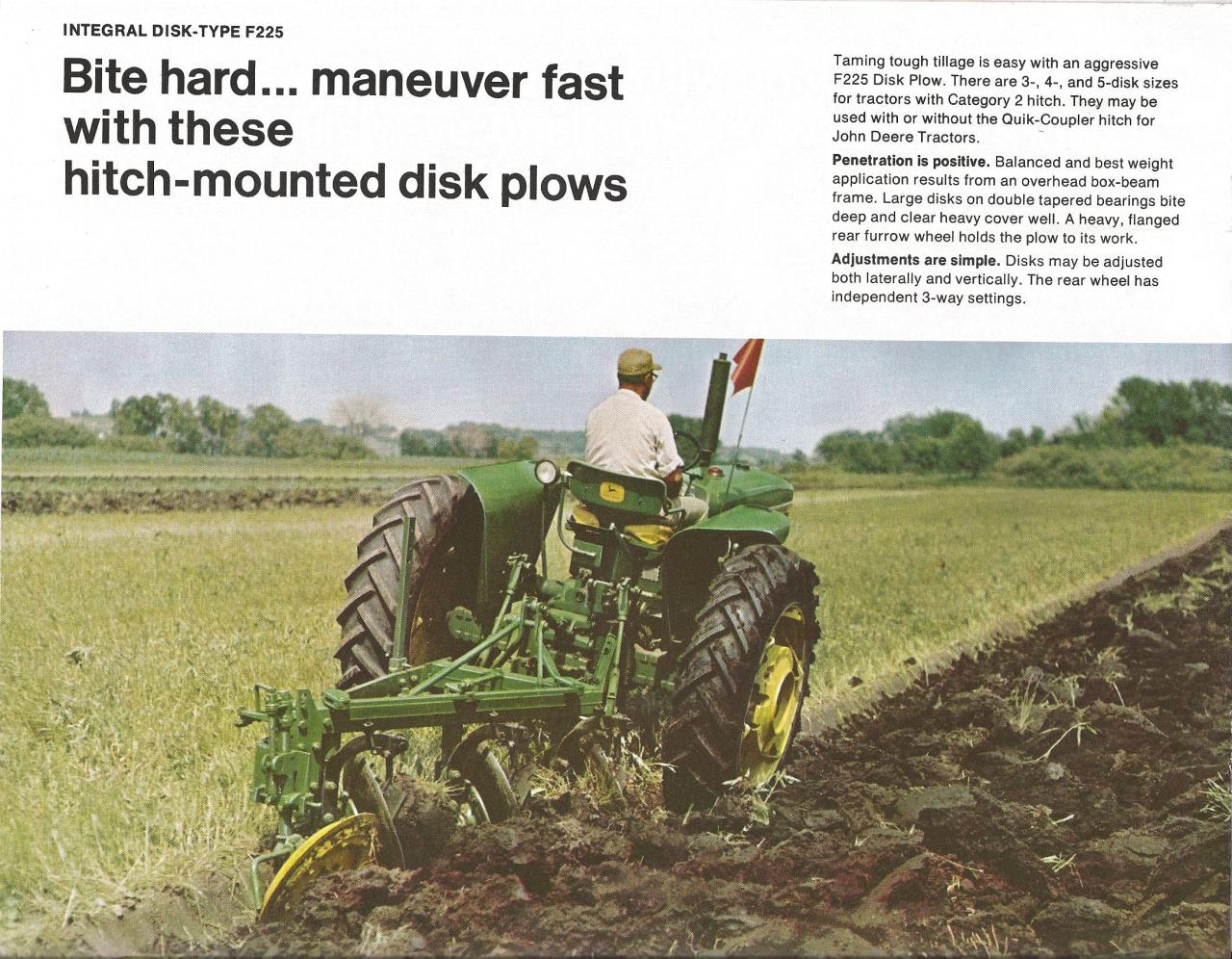

  • F225 disk plow 1970 brochure
  • 475 disk plow 1970

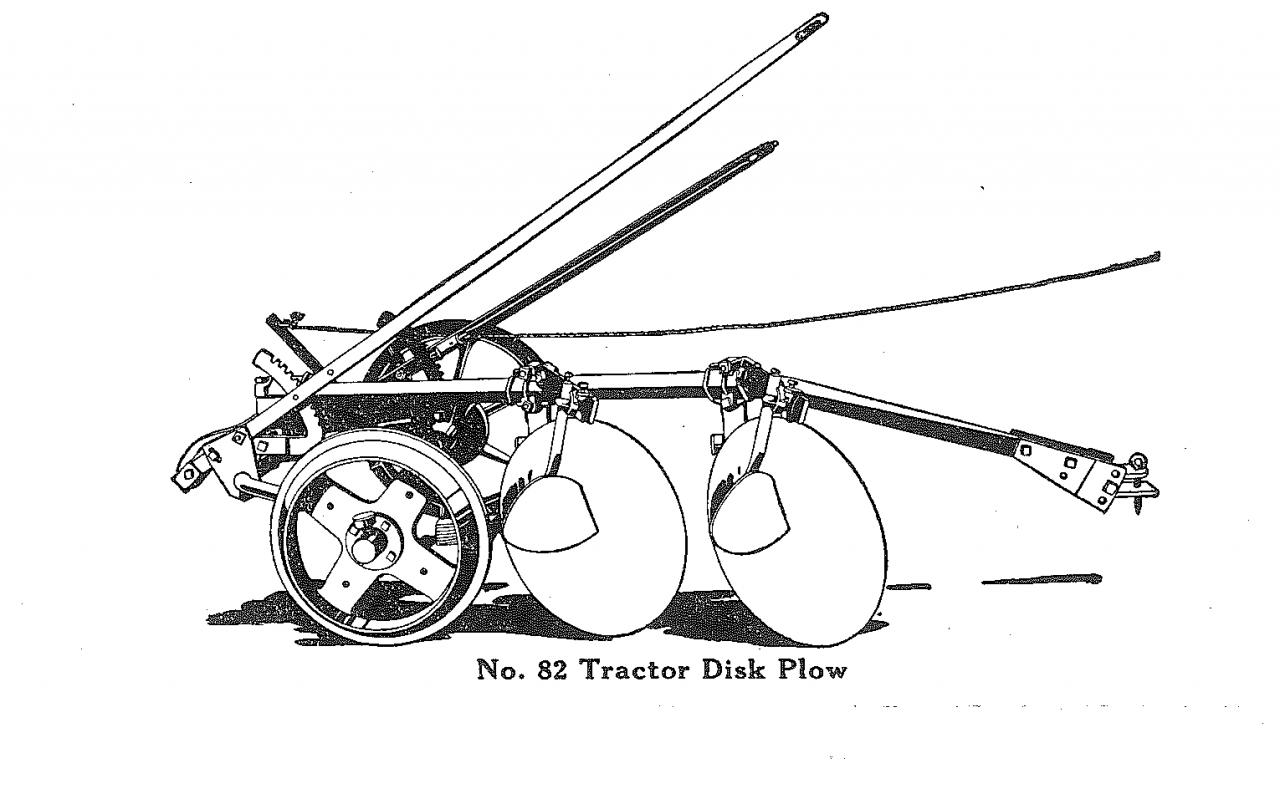

  • 82 / 83 JD Disk plow

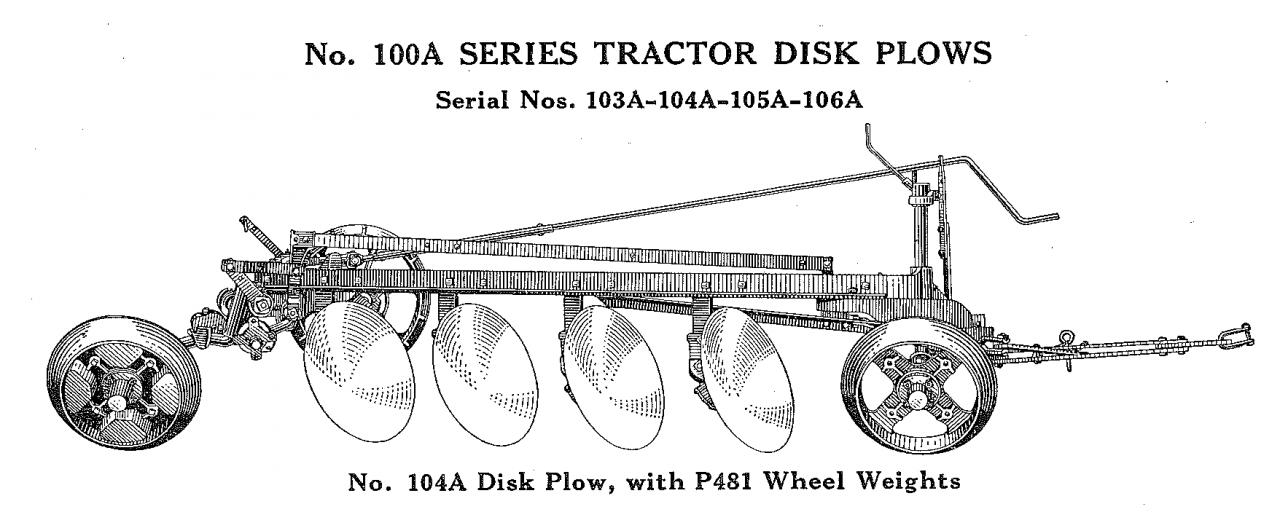

  • 100A series
  • 90 Series
  • 103 reduced to 2 disk size

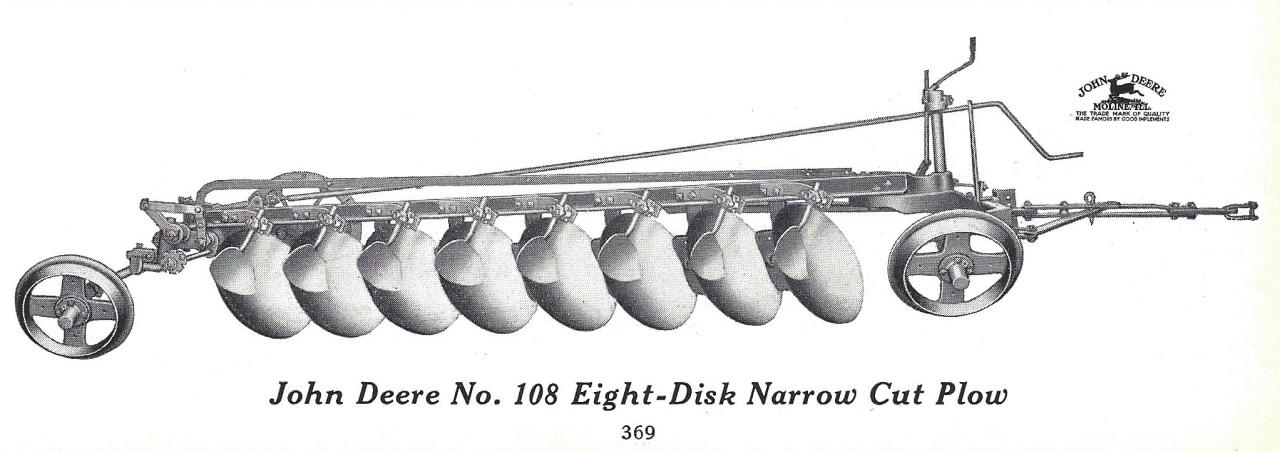

  • 108 - 8 disk plow

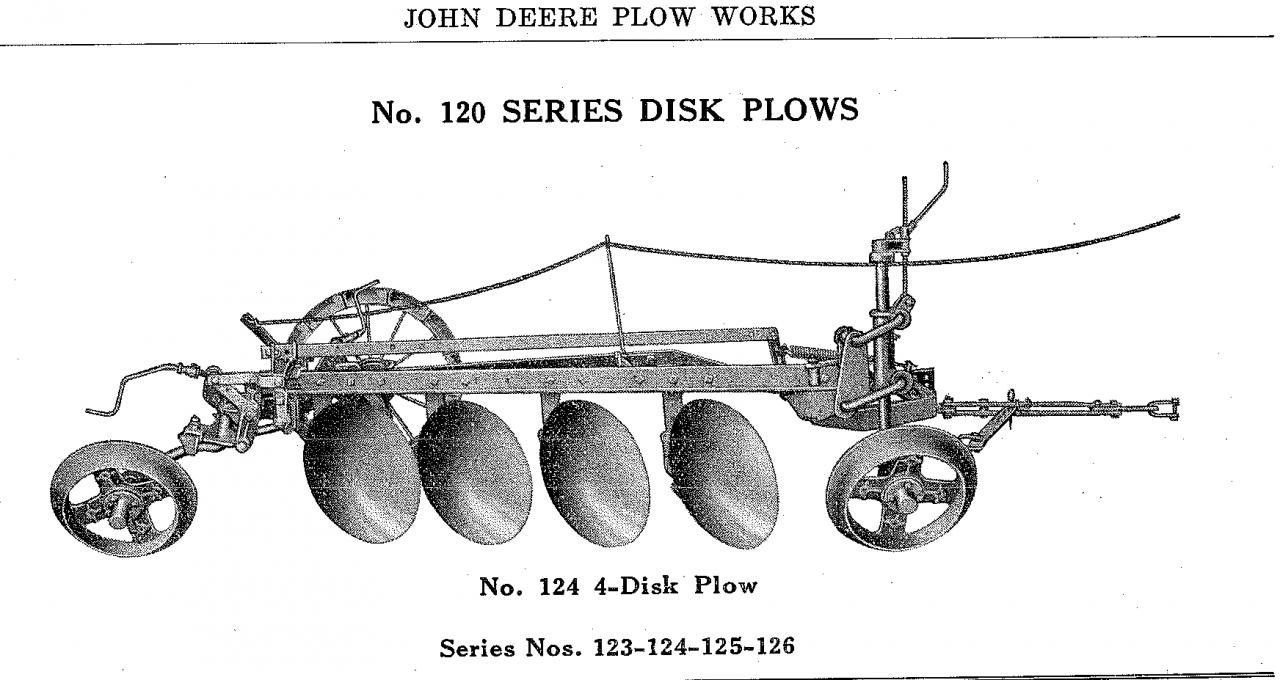

  • 120 series

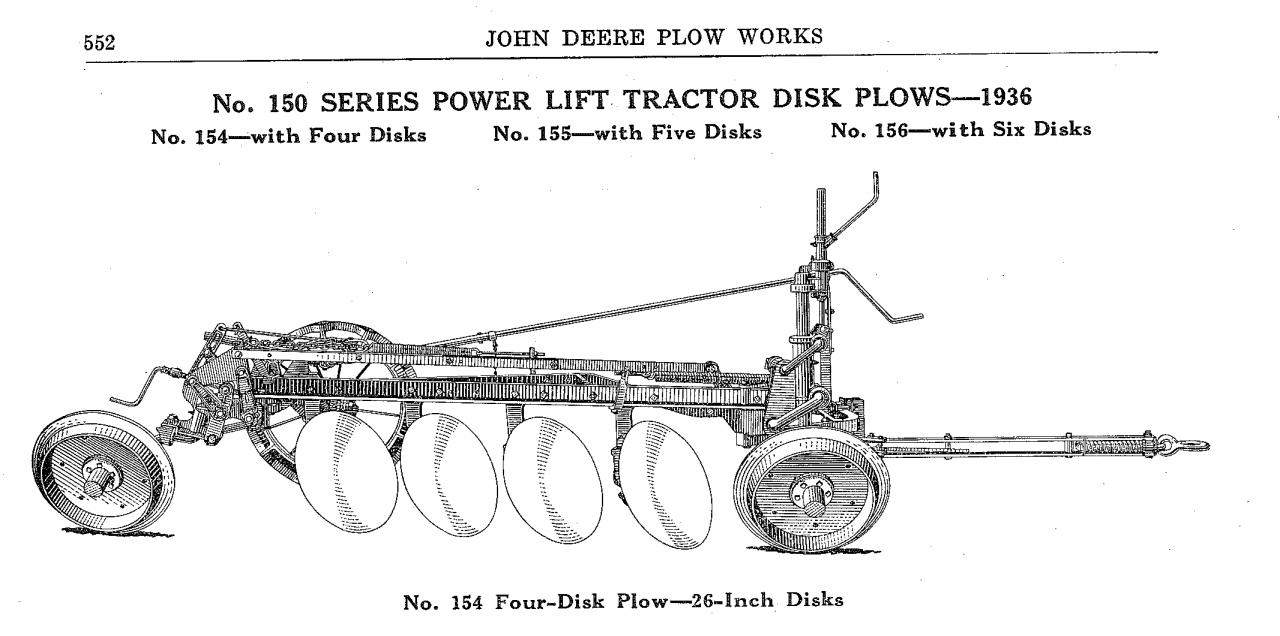

  • 150 series JD disk plows

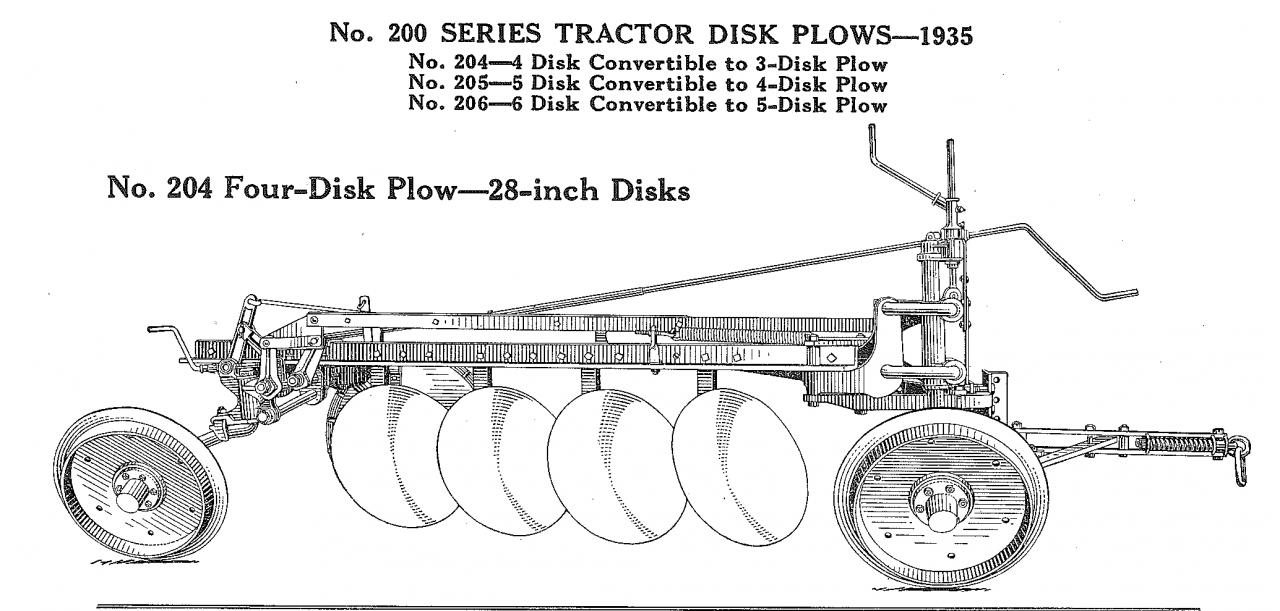

  • 200 series
  • 300 series
  • 400 series

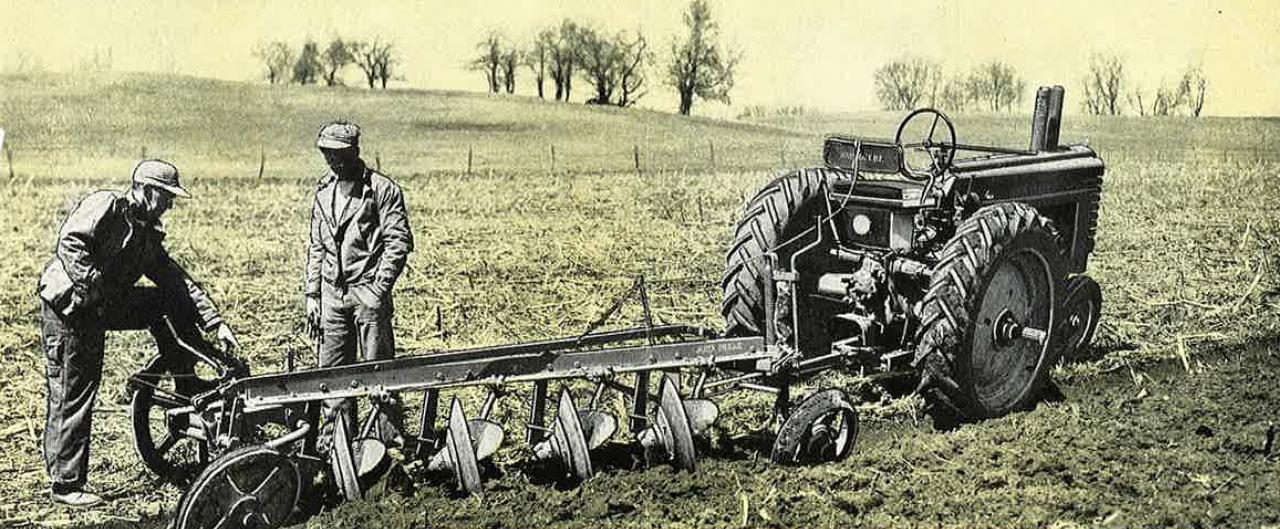

  • 403 photo 1952 sales literature

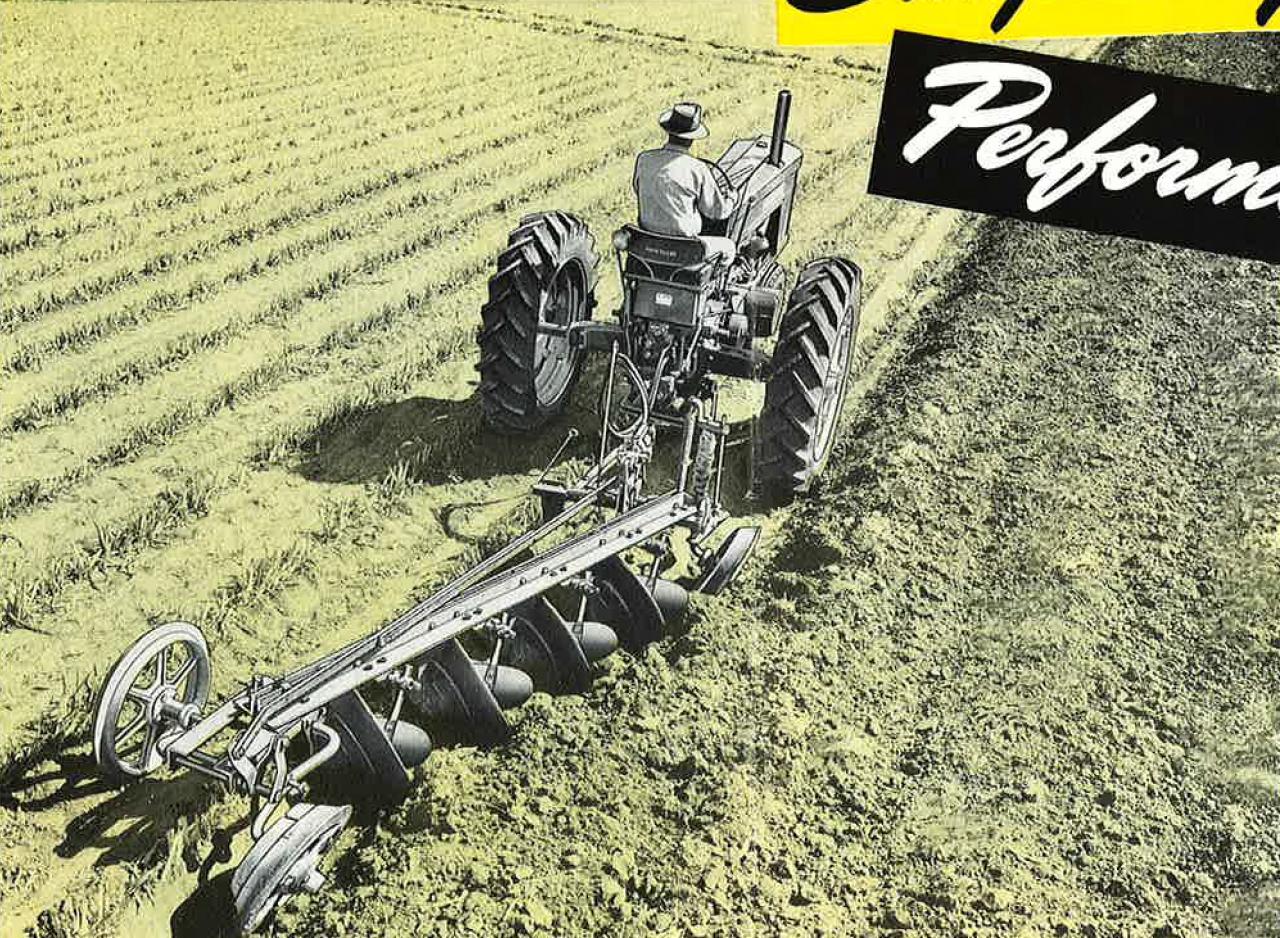

  • 404H with JD 60
  • 500 series HEADY DUTY 3 4 5 6 disk plows
  • 600 series Extra HD disk plows 4 5 6 disk sizes
  • 605 Disk plow

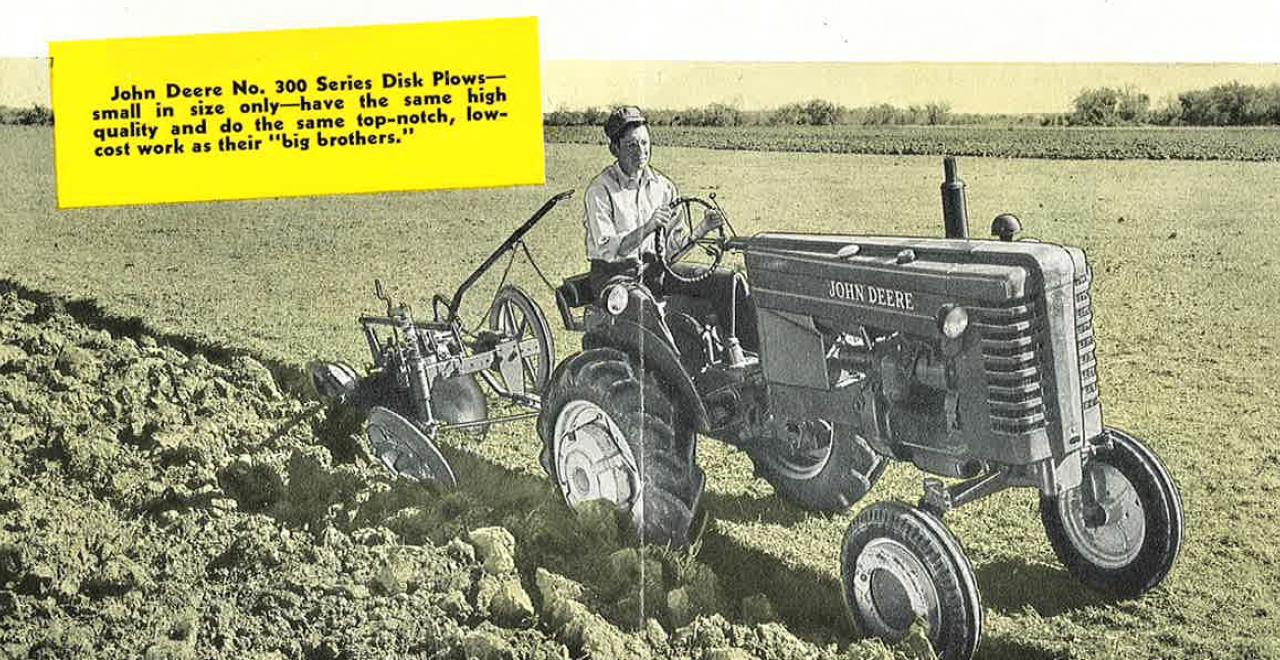

  • 300 series disk plows with JD M

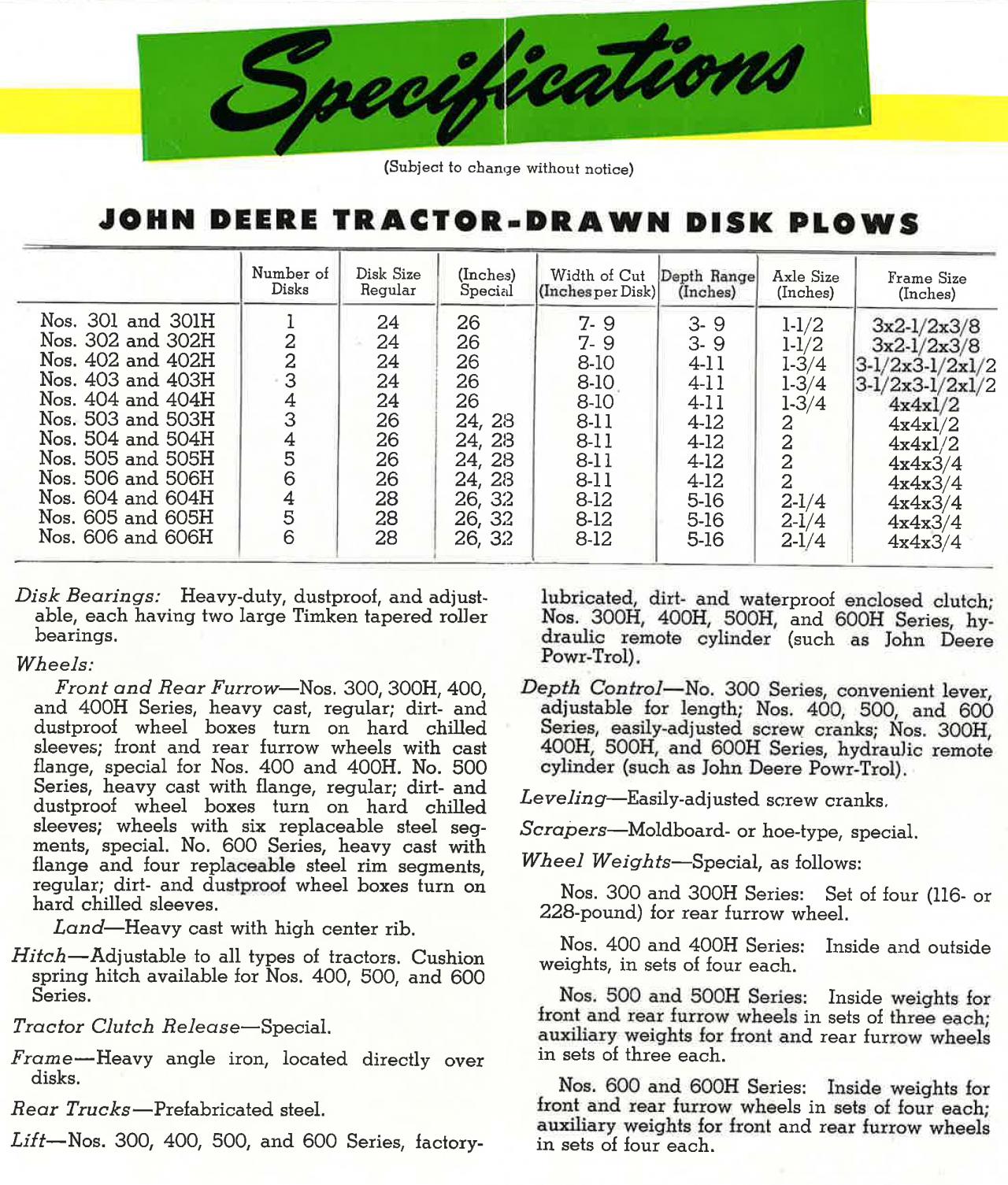

  • 300 400 500 600 series specifications
